Single Jersey Circular Knitting Machines

Single Jersey Circular Knitting Machine (6-Track Expert Series)

High-Speed 6-Track Single Jersey Circular Knitting Machine

Our expert Single Jersey Circular Knitting Machine features Central stitch adjustment, easy to operate and fast setting of the machine. The machine is ball bearing driven, so the machine is light and ensures smooth driving, less noise, and saves your energy expense.

Arranges 6-track cylinder cams (knit, tuck, miss) with expanded pattern versatility for plain jersey, pique, twill, and mesh designs.
Precision ball bearing drive ensures low noise, minimal mechanical wear, and reduced energy costs.
Positive storage feeders deliver uniform yarn tension with zero horizontal bar marks.

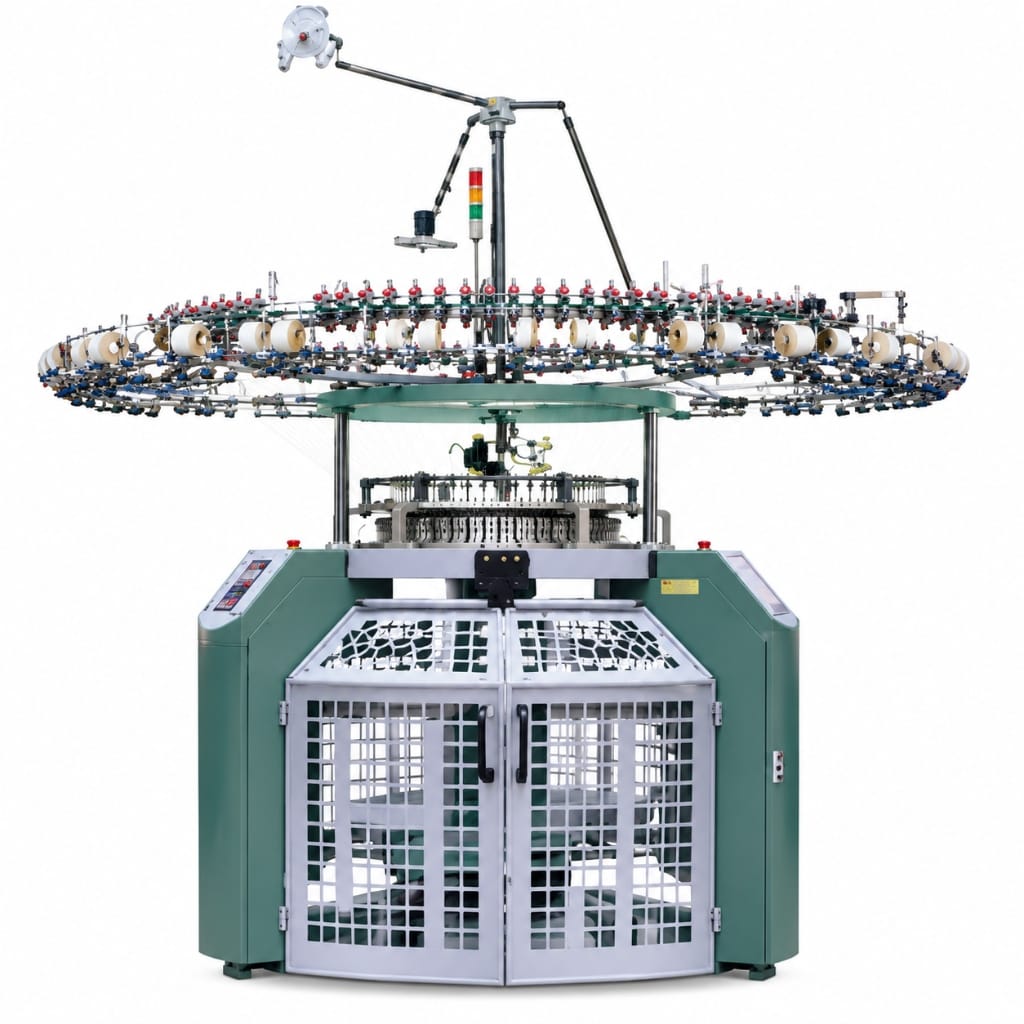

Terry Circular Knitting Machine

Face Terry Circular Knitting Machine for Polar Fleece & Reverse Terry for Velvet

Terry machines are engineered with Central Stitch adjustment and a precision Ball Bearing system to deliver plush, upright loop structures without yarn shear.

Face Terry for fluffy polar fleece thermal outdoor apparel.
Reverse Terry for premium dense velvet, velour sportswear, and bath towels.
Low-friction ball-bearing drive ensures light, smooth rotation and reduces electric power costs.

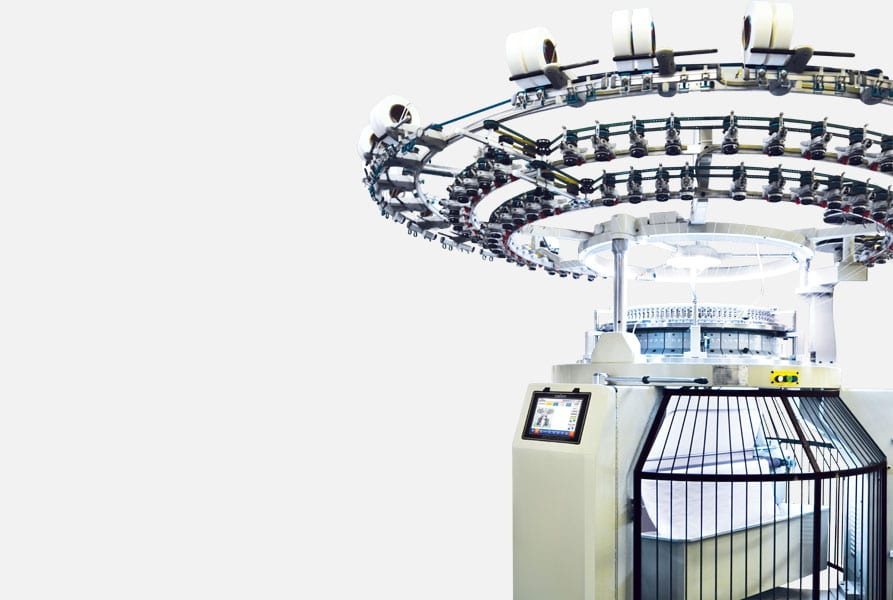

High Speed Three Thread Fleece Circular Knitting Machines

Single Jersey Three Thread Fleece Circular Knitting Machine

Mansha Three Thread Fleece Circular Knitting Machine: Four track cams machine equipped with Groz-Beckert needles, central stitch adjustment, and a precision ball bearing system for easy operation, smooth driving, and maximum heavy fleece stability.

Four-track cam box knits face, ground, and heavy tie-in inlay fleece loops simultaneously.
High loop density engineered for brushing, sheared hoodies, sweatpants, and winter jackets.
Central stitch adjustment enables rapid fabric weight (GSM) tuning without downtime.

Mansha Single Jersey Circular Knitting Machine

Mansha Open Width Single Jersey Circular Knitting Machines

Function and advantages:

1. Oil-Bathed Structure: Gear ring runs submerged in lubricant to prevent rust and smooth rotational performance.
2. Double Push Sinker Cam: Extends sinker service life and prevents vertical fabric line defects.
3. Advanced Computer Control System: Digital interface with intelligent motion detectors.
4. Zero Center Crease: Continuous motorized rotary cutter slits tubular cloth for crease-free open-width rolls.

Mansha High Speed Open Width Single Jersey Circular Machine

Industrial High-Output Crease-Free Lycra & Spandex Circular Knitting Machine

Equipped with heavy 2-step operator pedals, dual lint blowers, and spraying lubrication to ensure continuous high-yield production across continuous factory shifts.

2-Step Pedals: Equipped on the base of the machine, each pedal bearing weight 300 KG for safe operator access.
Dual Lint Blower Fans: High-flow blowers on top creel and cylinder eliminate lint accumulation and fabric holes.
Spraying-Type Electronic Oiler: Micro-mist electronic lubrication ensures needles and cams operate smoothly at high RPMs in all climates.
Crease-Free Slitting Roller: Electronically synchronized blade slits tubular cloth into open-width rolls without tension marks.

Mansha Bodysize Single Jersey Circular Knitting Machine

Compact Body Size Single Jersey Circular Knitting Machines

Product Overview: This series of small-diameter, high-precision circular knitting machines is specially designed for seamless underwear, tank tops, and athletic wear without side seams.

Small diameter 14" to 22" cylinder for seamless tubular knits with zero cut waste.
Central stitch adjustment with calibrated micro-meter tuning.
Equipped with spraying oiler and lint blower for reliable continuous high-speed runs.

Single Jersey Series Machinery
